CARRYBOY ALUMINIUM TRAYS
Built strong using quality 6063 Aluminium Extrusion.
Designed and proven to handle the toughest
improves conditions.
BENEFITS
Built to last
Minimum steel no rust ideal for the beach
Light but strong, load capacity

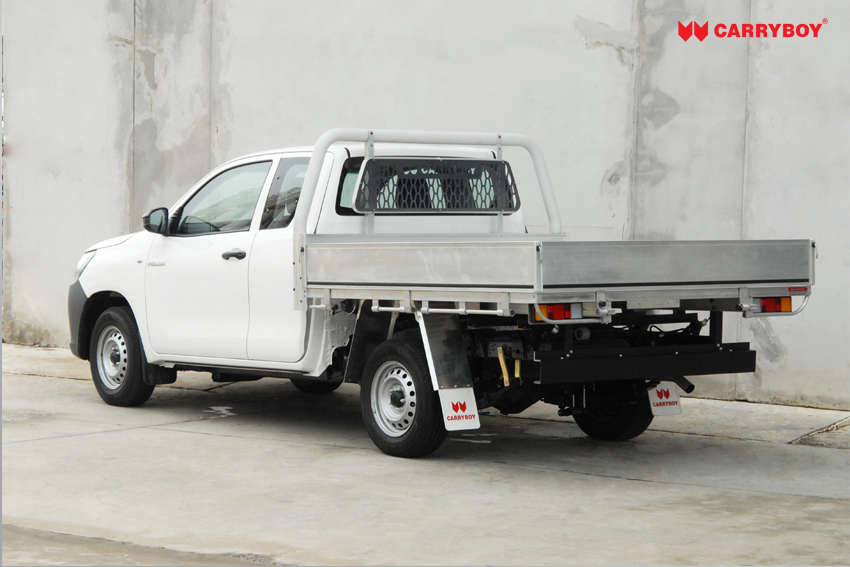

CARRYBOY ALUMINIUM UTE TRAYS


Are available in a range of sizes to suit almost all Dual cab, extra cab and single cab makes and models. Carryboy aluminium trays are suitable for many varied applications ranging from the fleet operator where interchange ability is an advantage, or the self employed sub contractor where a trouble free equipment is needed right through to the off road, beach fishing and camping enthusiast enjoys free time or maybe a combination of all the above.
The highest quality product available
Easy — Installation Aluminum Truck Tray

STANDARD — FEATURE


All Carryboy Aluminium trays have these standard features.
* Box section dropside and tailgate panels, very strong and with a smooth exterior is easy to maintain and ideal for signage
* Tough 76mm satin finish headboard front rack complete with load pins.
* Super strong tie down rope rails just to make sure all loads can be securely held.
Tray bodies are all aluminium extrusion so there is no potential rusty steel parts to see.
* Tail light protectors on every tray as standard.
* Tray load capacity is far greater than the vehicle so never any problem.

All Aluminum extrution Body

Self draining, non-skid deck.

Mudguards

Taillight with protectors

Swing handle

Locking cap and pin

Headboard (satin finish)

SIZE TRAYS

BODY DIMENSION : SINGLE CAB


Model : CB-790-02 / 2440 L (mm.) / 250 H (mm.) / 1910 W (mm.) / 90 Weight (kgs.)

BODY DIMENSION : EXTRA CAB


Model : CB-790-01 / 2000 L (mm.) / 250 H (mm.) / 1910 W (mm.) / 70 Weight (kgs.)

BODY DIMENSION : DOUBLE CAB


Model : CB-790-00 / 1775 L (mm.) / 250 H (mm.) / 1910 W (mm.) / 60 Weight (kgs.)

* Some details may be changed without prior notice. Contact us today and let us know you trucks dimensions and we can get started on the construction process of your.

ASSOCIATED ACCESSORIES OPTIONAL


Rear roll bar with mounting, under tray tool boxes and front mesh screen protection. We are the professional truck body builders.

Front Mesh Cabin Protection
Anti Slip Rubber Floor CB-784
L.E.D Rear Lamp Kit
Under Tray Tool Boxs

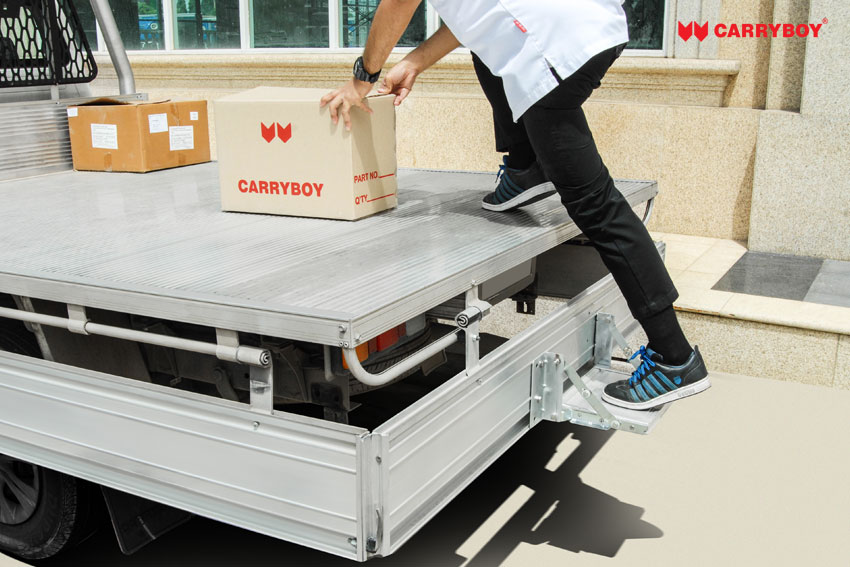

Foldastep for Aluminium Trays
Rear Under run bar
